StormAudio: Immersive Audio Processing for Dedicated Cinemas

StormAudio makes immersive audio processors for dedicated cinemas where channel count, signal routing, and calibration have to be planned as one system. The French manufacturer designs for professional AV integrators and distributes internationally. Its current families are Elite, Core, Evo, and Evo One. The processor overview outlines the models and design approach.

For luxury homeowners in NJ, CT, and NY planning a dedicated cinema, Restrepo Innovations is an Elite Pro Crestron Dealer and HTA Luxury Certified integrator that designs and supports room-scale control systems.

StormAudio's processor range serves different cinema briefs

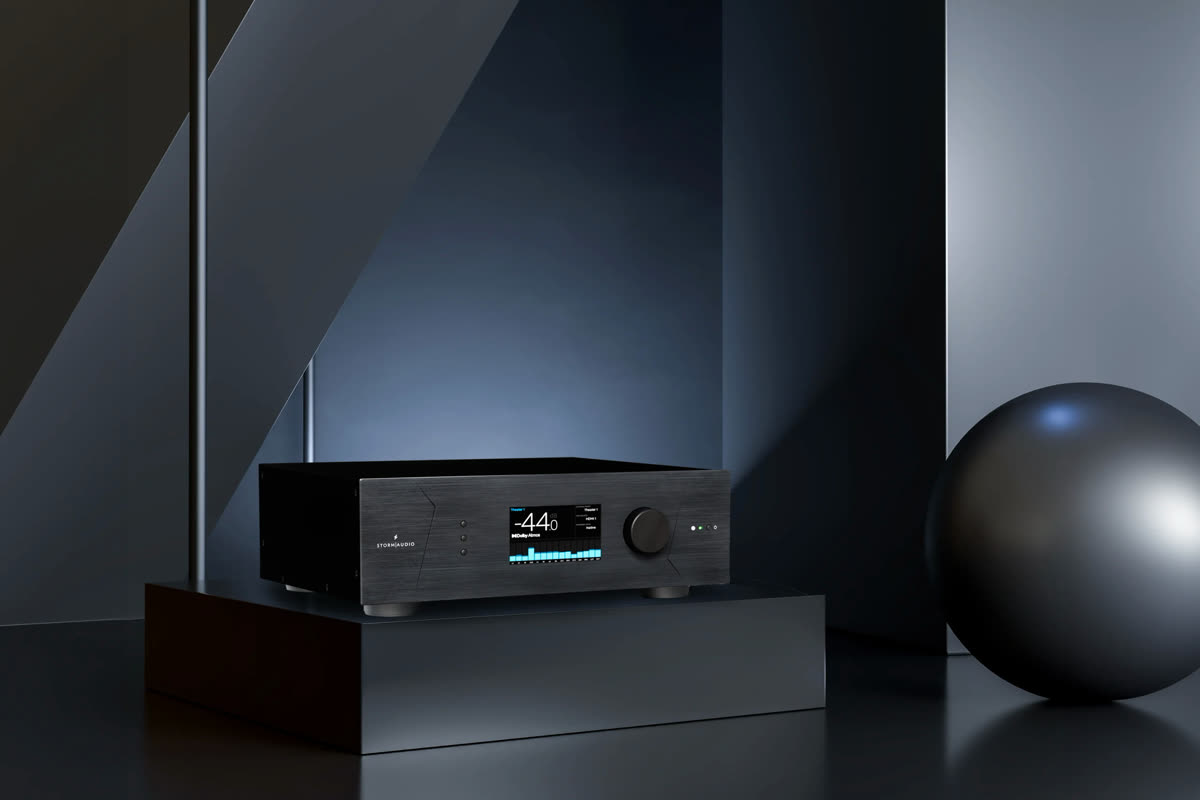

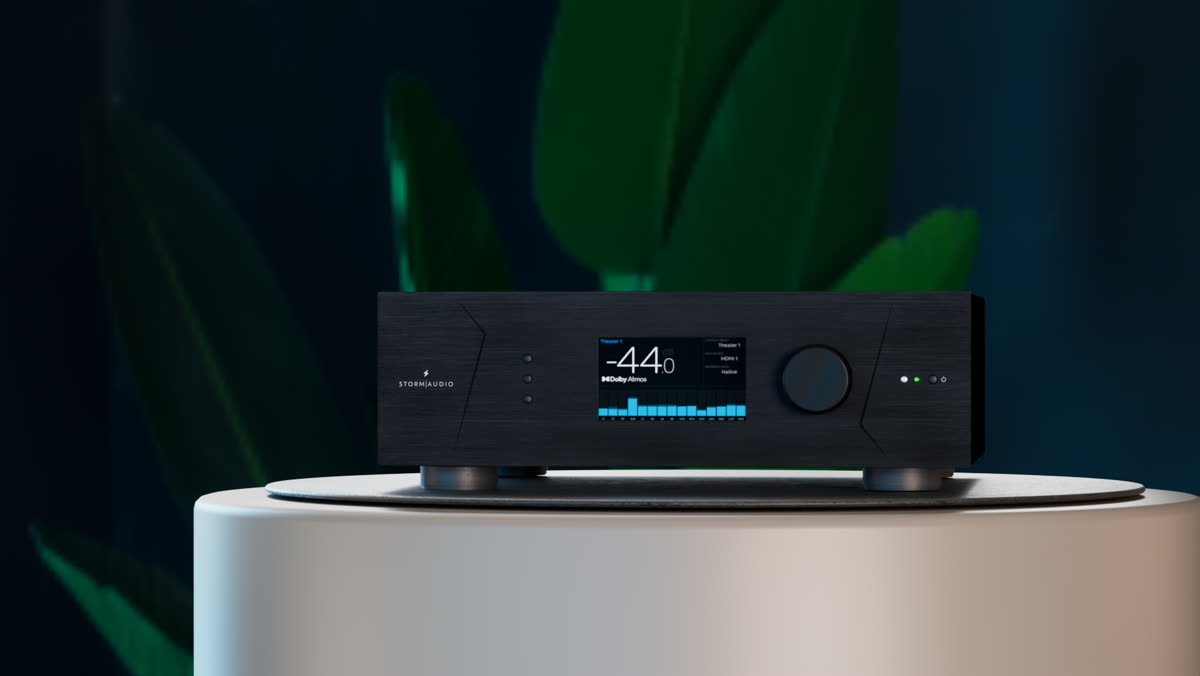

Choose a model from the speaker layout first. A 7.4.4 room, a 9.4.6 cinema, and a digital-first studio have different routing and equipment needs. StormAudio positions Core 16 for compact systems, Elite for larger channel counts, and Evo for digital audio-over-IP rooms.

The processor family currently described by StormAudio can be compared at a high level:

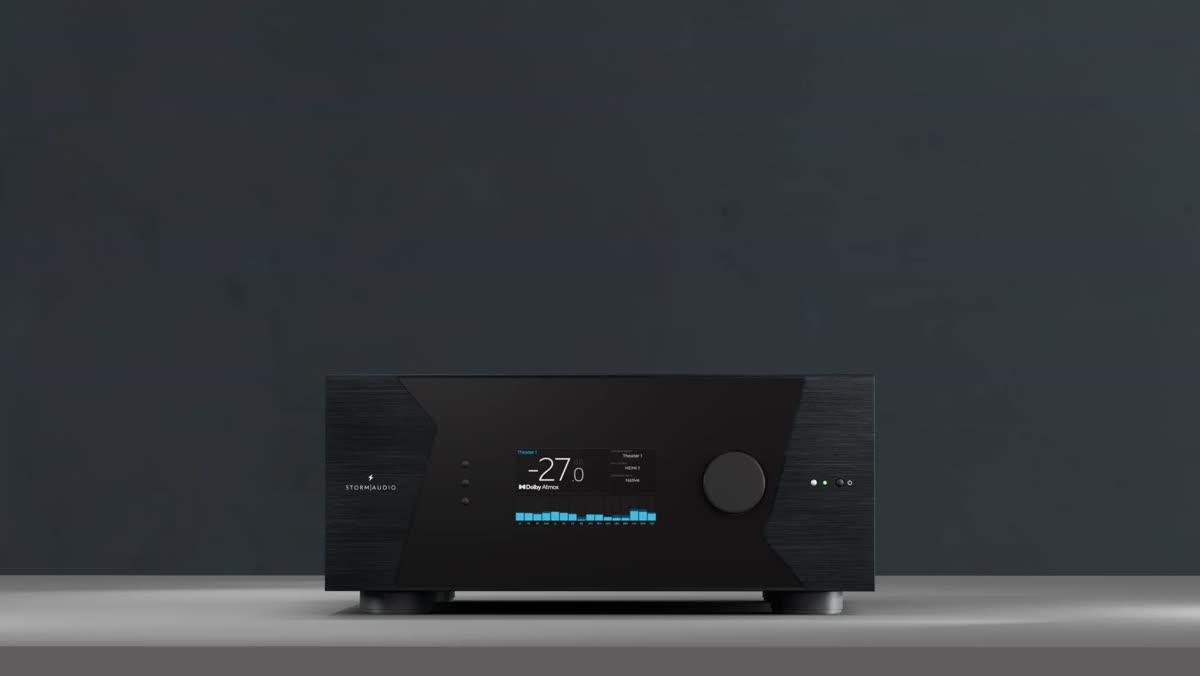

These are starting points, not room prescriptions. StormAudio lists the ISP Elite MK3 for decoding and upmixing up to 32 channels and offers output paths that include XLR analog, AES/EBU, and AES67 or Dante, depending on the configuration. The company's product page says the Elite has received multiple awards as a home-cinema sound processor. A system designer still has to confirm the exact module set against the speaker layout, amplifier inputs, source equipment, and future expansion plan. See the manufacturer's ISP Elite MK3 specifications before the equipment schedule is finalized.

Channel count is only one part of the processor decision

A channel number describes how many discrete audio paths a processor can handle. It does not specify speaker count, placement, or performance across the seats. The cinema layout, screen wall, ceiling geometry, acoustic treatment, subwoofer positions, and amplifier channels shape the final design.

Connections matter just as much. An analog XLR installation needs a clear plan for processor-to-amplifier runs and rack placement. AES/EBU can reduce the analog interconnect count. AES67 or Dante audio-over-IP may make sense when the system is built around networked audio, but it also brings network design and clocking requirements into the project. Those choices should be coordinated with the integrator before walls close and equipment is ordered.

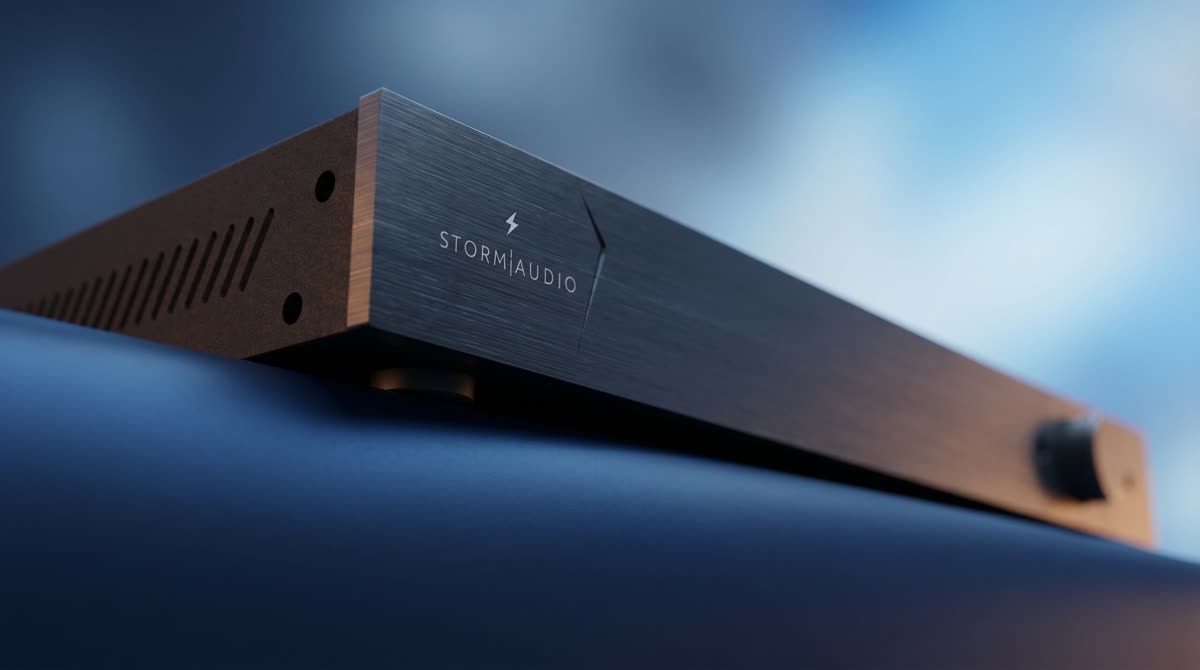

Evo One illustrates a more compact format. StormAudio lists 8, 12, or 16-channel configurations, AES/EBU connections, AES67 input and output or Dante output, HDMI 2.1b, and a 1RU chassis. That footprint can help when rack space is constrained, but the chosen I/O still needs to match the sources and amplifiers. The Evo One product page carries the current configuration details.

Room correction needs measurement and commissioning

StormAudio's calibration suite combines Dirac Live room correction, Bass Control, Active Room Treatment, and manual adjustment tools. Dirac describes Active Room Treatment as coordinating speakers to reduce resonances and lingering bass. It does not remove the need to place speakers and subwoofers correctly or measure the room.

Calibration begins after the room and speaker system are defined. The installer measures from representative seats, verifies speaker polarity and routing, then checks how the processor's correction interacts with the room. Dirac's Active Room Treatment overview explains the role of coordinated speaker behavior. The listening result still depends on the room, loudspeakers, subwoofers, measurement positions, and the target curve selected for the client.

A dedicated cinema also needs ordinary infrastructure planning. Keep ventilation clear around the rack, label every signal path, document module and firmware choices, and leave service access for future work. These details affect reliability long after the first calibration session.

StormAudio in a project: design the room before the rack

Restrepo's work with StormAudio begins with the room brief, not a processor model. We review seating, speaker locations, screen dimensions, subwoofer positions, source devices, cable paths, ventilation, and service access before the equipment schedule is settled. The selected processor has to fit that plan and the control system around it. As Michael Restrepo puts it, "A processor should be selected around the room, the speaker layout, and how the system will be maintained."

Restrepo Innovations designs and supports dedicated home theaters and immersive cinema systems, with distributed audio and network infrastructure coordinated where the project calls for it. The team serves NJ, CT, and NY. A planning conversation before framing or millwork starts can resolve the connections and clearances that are difficult to change later. Call 201.405.2022 if you want to walk through a project.

StormAudio processor questions

What does a StormAudio processor do?

A StormAudio processor decodes immersive audio formats, routes sound to the room's speaker channels, and provides tools for system calibration and control. The product family serves dedicated home cinemas and professional AV integrators. The appropriate model depends on channel count, analog or digital connections, room layout, and whether the installation needs audio over IP.

How many channels can the StormAudio ISP Elite MK3 process?

StormAudio lists the ISP Elite MK3 for decoding and upmixing up to 32 channels, with analog XLR, AES/EBU, and AES67 or Dante options depending on configuration. The exact input and output modules should be selected against the theater design. Channel capacity alone does not determine speaker placement, amplification, or calibration requirements.

What is different about StormAudio Evo One?

Evo One is a compact digital immersive processor configurable for 8, 12, or 16 channels. StormAudio lists AES/EBU inputs and outputs, AES67 input and output, or Dante output, plus HDMI 2.1b and a 1RU chassis. It is intended for smaller immersive systems where rack space and a digital signal path matter.

Does StormAudio support Dirac Live Active Room Treatment?

StormAudio's processor pages list Dirac Live room correction, Bass Control, and Active Room Treatment as part of its calibration capabilities. Active Room Treatment coordinates speakers to address room resonances and lingering bass. Results depend on the room, speaker system, measurement positions, and configuration, so calibration remains a designed and verified part of commissioning.

How should a homeowner choose a StormAudio processor?

Start with the cinema's speaker layout, seating, rack location, source equipment, and required control connections. Then confirm channel count, output type, network audio needs, and expansion plans against the specific processor configuration. A design review before construction closes helps coordinate speaker locations, cable routes, ventilation, and service access.
