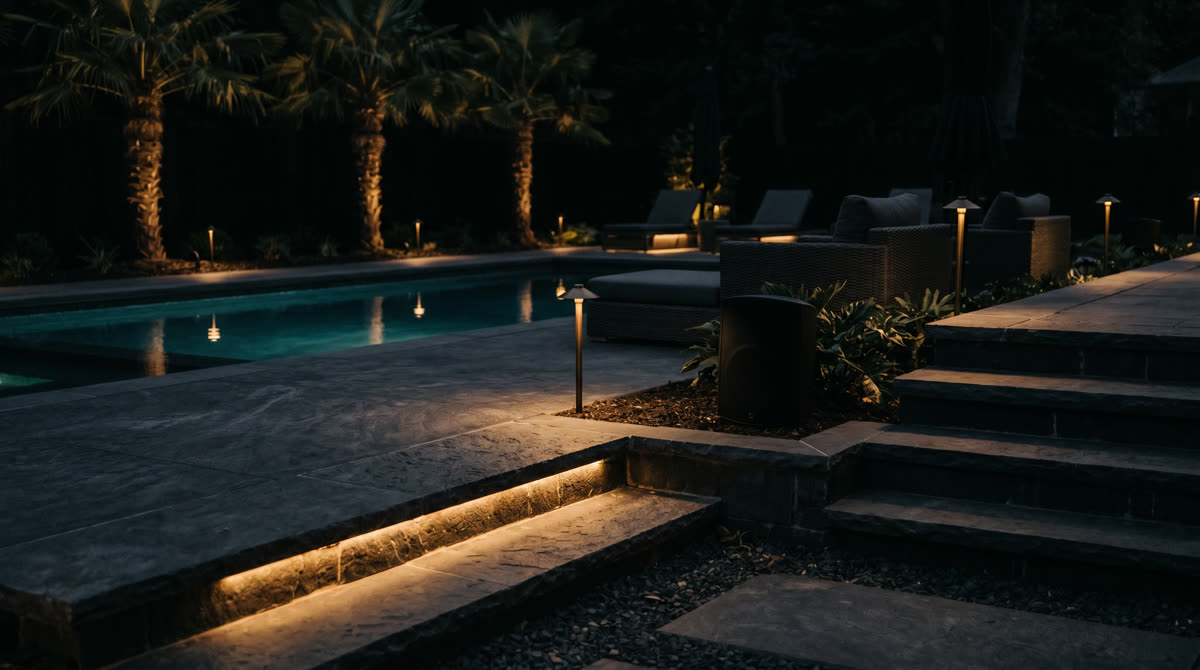

Landscape Lighting Zones: Curb Appeal and Security

Landscape lighting design is not a product-selection exercise. it is a zone architecture problem. The fixture type, mounting location, and beam angle specification all matter, but they are secondary to the first question every outdoor lighting plan must answer: what zones exist, what function does each zone serve, and how are those zones controlled independently? Get the zone architecture wrong and the best fixtures in the world produce the wrong result.

Restrepo Innovations designs outdoor lighting systems as authorized Coastal Source dealers, and every project begins with zone definition before fixture selection.

The Five Functional Zones of Outdoor Lighting

Zone 1. Architectural / Curb Appeal: The front elevation, columns, stonework, and landscape features visible from the street. This zone creates first impression and property identity. Typical fixtures: bullet uplighters at 15–36° beam spread aimed at architectural features; wall-wash fixtures grazing stone facades; path lights along the approach drive. Control: timed sunset-to-11PM or midnight at full output, then reduced to 30% overnight.

Zone 2. Safety and Wayfinding: Steps, grade changes, doors, and any surface where fall risk exists. This zone operates at lower intensity than architectural lighting. its job is to reveal surface boundaries, not create drama. Typical fixtures: step lights integrated into every riser; path lights at 8–12 foot intervals on walkways; in-grade well lights at grade transitions. Control: always-on from dusk to dawn at reduced output (20–40% of full brightness).

Zone 3. Security: Coverage of perimeter access points, driveway entry, side passages, and dark corners where intrusion risk is highest. Motion-triggered operation at full intensity maximizes deterrent effect while avoiding the constant bright-light pollution of always-on security. Typical fixtures: wide-flood area lights at 90°+ beam; motion-sensor-integrated wall fixtures at garage and entry doors. Control: motion-triggered, 5-minute hold, full intensity; integrated with Crestron security system for alarm-triggered all-zone activation.

Zone 4. Entertainment / Pool: Pool surround, outdoor kitchen, patio, and gathering areas. This zone operates on demand for entertaining and shuts off when the space is not in use. Typical fixtures: pool cove underwater lights (if pool exists); directional area lights for outdoor kitchen task; low-level path lights at seating perimeter; string or pendant fixtures for covered outdoor kitchen. Control: scene-activated from Crestron keypad or app; scenes include “Dinner,” “Party,” “Pool Night,” and “Cleanup.”

Zone 5. Landscape Feature / Garden: Trees, specimen plantings, garden structures, and water features. The aesthetic layer of outdoor lighting, aimed at creating depth and drama in the planted landscape. Typical fixtures: bullet uplighters at large trees (36° for broad canopy; 15° for columnar forms); well lights for in-grade uplighting; directional fixtures aimed at specimen plantings. Control: timed sunset-to-11PM; reduced or off overnight.

Zone Control Strategy

Each zone requires independent control. A common mistake in outdoor lighting is running all zones on a single transformer timer. everything on at sunset, everything off at midnight. This approach wastes energy, creates security exposure (when architectural lights are off, security coverage drops), and prevents entertainment and scene use.

The correct infrastructure: one transformer per zone (or one multi-tap transformer with isolated zone outputs), each controlled by a Crestron relay output. This allows:

Time-of-day programming: Zone 1 and 5 at full output sunset to 11PM, then 30% until sunrise. Zone 2 at 25% all night. Zone 3 on motion only. Zone 4 off except when activated.

Scene integration: A “Departure” scene activates Zone 1 and 2 at full brightness when the garage door opens. A “Return Home” scene triggered by gate access activates the same. A “Good Night” scene reduces Zone 1 to 30%, confirms Zone 2 is active, arms Zone 3 motion detection, and deactivates Zone 4.

Alarm integration: When the Crestron security system triggers an alarm, all outdoor zones activate simultaneously at full output. This combination of brightness and zone activation is significantly more effective as a deterrent than any single security fixture.

Uplighting Technique: Getting Beam Angles Right

Uplighting trees is the most common application in landscape feature lighting and the one where technique matters most. The relationship between beam angle, mounting distance, and tree form determines whether the result looks professional or amateurish.

Columnar trees (Italian Cypress, columnar hornbeam, arborvitae): Narrow beam, 10–15°. Mount close to the base, aim directly up. The narrow beam illuminates the form without spilling onto surrounding planting.

Broad canopy trees (oak, maple, mature specimen trees): Wide beam, 36–60°. Mount 3–6 feet from the trunk for mid-canopy illumination, or 8–12 feet for full canopy wash. Multiple fixtures may be required for large specimens.

Palms: 15–20° beam aimed at the frond crown from directly below. The narrow beam highlights the architectural quality of the crown without lighting the trunk, which reads as a flag-pole with standard uplighting technique.
