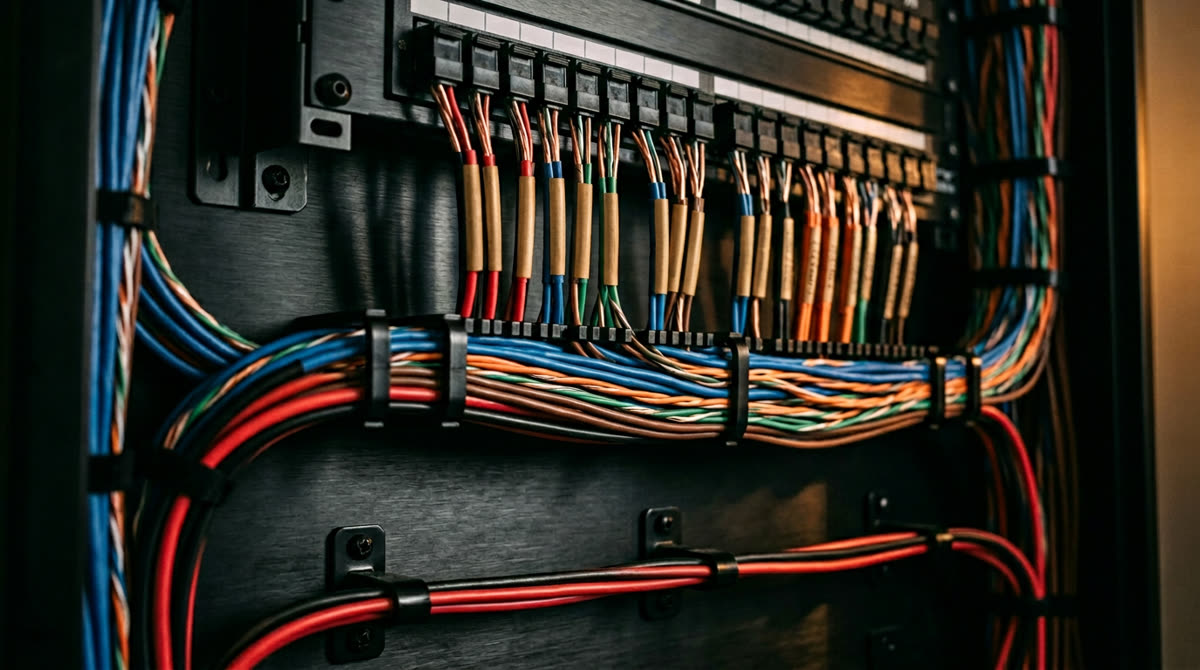

Wiring Done Right: Brackets, Best Practices, and Avoiding the Gremlins

The gremlins almost never show up on day one. They arrive two years later, when a homeowner calls because the 4K stream keeps dropping, the surround channel cuts in and out, or the security camera feed goes black in heavy rain. The integrator opens the wall panel and finds unlabeled cable bundles zip-tied to conduit like a bowl of spaghetti, Cat6 bent around a framing corner at a 90-degree kink, and speaker wire stapled flat every six inches across a joist bay. None of it failed during commissioning. All of it was already failing the day it was installed.

Wiring is 80 percent of long-term system reliability. The processor, the amplifier, and the switch get replaced on a five-to-seven year cycle. The cable behind the wall stays there for thirty years. Every dollar and every minute spent on proper rough-in practice pays back in fewer service calls, faster troubleshooting, and a system that simply works when the client presses a button.

Brackets matter more than you think

A low-voltage mounting bracket is the structural home for every cable termination that lands at a wall plate. The two dominant product families on job sites are the Caddy MP1S and MP2S from nVent and the Arlington LV1 and LV2. The MP1S accepts a single-gang low-voltage ring; the MP2S takes a two-gang configuration. Arlington LV1 and LV2 are old-work versions that install through a cut hole after drywall is hung. Both families share one important trait: they hold the cable end exactly where it belongs relative to the finished wall surface, they resist being pulled or pushed by cable tension, and they give a termination point that will not rotate or flex when a technician seats a connector. The cheap blue plastic old-work rings found at big-box stores are not a substitute. They are held in place only by the friction of a plastic flange against drywall. Over time, cable weight and repeated plug insertions work them loose. A loose ring means the keystone jack moves, the termination shifts, and eventually the connection fails. Mud rings - steel rings that attach directly to a stud or blocking before drywall - are the correct new-construction answer. They do not move. They are not optional on a project where the wall will be closed for decades. P-rings serve a similar role at the panel end, keeping bundle entries organized and protecting jacket edges from the steel cabinet cutout. Every bracket choice is a decision about whether the wiring will still be correct in year twenty.

Rough-in: the only time you can do this cheaply

The framing stage is the single lowest-cost moment in the entire life of a system. Walls are open. Drilling is easy. Running an extra home-run costs fifteen minutes and forty feet of cable. Doing that same run after drywall means two days of patching, painting, and explaining to the homeowner why there is dust on the furniture. The right practice is to run more than you think you need. Every TV location gets conduit plus at minimum two Cat6 runs and one RG6 quad-shield run, even if only one of those cables is specified today. Every camera location gets conduit to a ceiling junction or attic space with a pull string left inside. Cables land at the panel with a slack loop of not less than ten feet - enough to re-terminate twice without pulling tension from behind the wall. At the device end, leave eighteen to twenty-four inches past the bracket. Support cable every four to five feet per NEC Article 725 and 800 requirements using J-hooks on joists or beam-clamp J-hooks on steel framing. J-hooks preserve jacket geometry. Zip ties on joists, pulled tight, do not. Wire combs and D-rings at the panel keep home-runs dressed before any termination work begins. The discipline of the rough-in determines whether the system is serviceable for its entire life.

Separation, bend radius, and the physics you cannot cheat

Two physical rules govern low-voltage rough-in, and neither one cares about schedule pressure. The first is bend radius. Category 6 cable has a minimum bend radius of four times the cable outer diameter - typically about one inch for standard 23-AWG Cat6. Bend it tighter and the twisted-pair geometry inside the jacket deforms. The pairs lose their twist rate uniformity. Crosstalk rises. Attenuation rises. The cable will pass a basic wiremap and may even pass a bandwidth test at short distances, but at full channel length under load it will not certify to TIA-568 Category 6 performance. The physics were violated during rough-in and no amount of re-termination will fix a kink behind drywall. The second rule is separation from line voltage. NEC Article 800 and 725 require low-voltage cable to maintain a minimum of two inches from line-voltage conductors in most residential applications, and most commercial specifications push that to six or twelve inches for parallel runs. The reason is inductive coupling. A 120-volt or 277-volt circuit running parallel to a Cat6 home-run induces noise into the data pairs, particularly at low signal levels. Perpendicular crossings - when unavoidable - are acceptable. Long parallel runs within six inches of EMT conduit carrying line voltage are not. Fish paper and dedicated low-voltage conduit protect cable in mixed-use chases. These are not suggestions. They are the baseline for a system that performs as specified.

Labeling is not optional

Every cable gets a label at both ends before any termination work begins. The label identifies the room, the device type, and the jack number - for example, 'LR-TV-C1' for living room, TV location, cable one. Labels are machine-printed, either with a dedicated cable labeling tool or with heat-shrink label stock run through a desktop printer. Permanent marker is not acceptable. Marker ink fades in twelve to eighteen months under the heat cycling inside a panel enclosure. It smears during the rough-in phase when cables are being pulled and bundled. It is illegible at three feet in a dark equipment room. A panel with hand-written labels is a panel that will require a technician to ring out every single run before any service work can begin. A properly labeled panel with machine-printed labels, a patch diagram, and a port schedule on the inside cover door reduces every service call by two to four hours. That savings compounds across the life of the system. For a home with sixty or eighty cable runs, the labeling investment at rough-in stage costs two hours. The alternative costs two hours every single time anyone opens that panel. Labeling is not overhead. It is engineering.

Test, certify, document

There are two different things a technician can do with a cable tester. A wiremap test confirms that pins are connected in the right order and that there are no opens or shorts. It costs thirty seconds per run. It tells you nothing about the channel's performance under real network load. A Fluke DSX certification test - or equivalent TIA Level III field certification - measures insertion loss, NEXT, FEXT, return loss, and propagation delay across the full frequency range of the cable category. It produces a pass or fail result against the published TIA-568 standard and generates a timestamped report for every single run. The difference matters because a cable can pass a wiremap and still fail certification due to a kink, a bad termination, or excessive untwisting at a jack. 'It works' is not the same as 'it is certified.' For luxury residential and light commercial projects, Restrepo Innovations provides a full Fluke certification report as part of the closeout package, along with as-built drawings showing every run, every panel port, and every device location. That documentation is the system's birth certificate. It is what the next integrator, the next IT contractor, or the homeowner's facilities manager will reach for in year eight when something needs to change.

Future-proof with conduit and pull strings

The standard that defines network cable today is not the standard that will matter in five years. Cat6 at 1 Gbps is the current baseline for residential. Cat6a at 10 Gbps is the correct specification for any new construction today, particularly for wireless access point drops and video distribution runs. Single-mode fiber to the living room entertainment wall is no longer a custom specification for ultra-high-end homes - it is a reasonable choice for any build where the media room will be used for more than a decade. The mechanism that makes future upgrades possible without opening walls is conduit with a pull string. Every TV location gets a 3/4-inch or 1-inch smurf tube - corrugated ENT - from the panel to a low-voltage bracket at the wall, with two independent pull strings left in place at closeout. When the client upgrades to fiber or to a higher-bandwidth standard, the new cable follows the existing conduit. No drywall. No patching. No disruption. For luxury home builds in Bergen County, Fairfield County, and Westchester, Restrepo Innovations treats conduit as a standard line item, not an upgrade. The cable you install today is a placeholder. The conduit is the infrastructure that makes every future cable possible.

The bottom line

Restrepo Innovations approaches every project - from a single-family home in Alpine to a multi-dwelling build in Manhattan - with the same engineering standard. The rough-in is the foundation. Brackets, support spacing, bend radius, labeling, and conduit are not variables that get value-engineered out when the schedule tightens. They are the reason systems perform in year ten the same way they performed on commissioning day.

If you are planning a new build or renovation in northern New Jersey, Connecticut, or the New York metro area, the time to have this conversation is before the framing inspection. Call Restrepo Innovations at 201.405.2022 or email office@restrepoinnovations.com. Our office is at 599 Franklin Ave, Franklin Lakes, NJ 07417. We serve Bergen, Essex, Morris, Passaic, and Hudson counties in New Jersey; Fairfield, Litchfield, and surrounding towns in Connecticut; and Westchester, Manhattan, and the Hamptons in New York.
