Media Room & TV Viewing Room Design

What a Media Room Is, and Is Not

A media room is a family room, great room, upstairs bonus room, or finished basement that functions as a genuine viewing space without being a dedicated cinema. It is used daily. for morning news, afternoon sports, evening movies, and gaming sessions that run past midnight. It is not acoustically sealed. It is not blacked out. It does not have tiered seating or a projector throw calculated to the centimeter. What it does have is a properly sized display, speakers the room cannot see, lighting that responds to what is happening on screen, and a single control point for all of it. If you want a dedicated home theater, we build those too. but most clients who think they want a theater actually want a media room done correctly.

The Four Problems a Media Room Solves

1. Display: Sizing for the Room and the Light

The first decision is not brand or technology. it is size. Display size in a media room is driven by seating distance and the SMPTE viewing-angle standard. A 10-foot viewing distance resolves around an 85- to 98-inch panel. A 14-foot great room that seats multiple rows warrants 110 inches or more. We calculate from the room, not from what was on sale at the showroom.

On technology: OLED panels deliver the deepest blacks and the best off-axis performance for rooms where viewers sit at angles. a typical open great room scenario. Mini-LED with local dimming handles high-brightness environments and larger diagonal sizes where OLED panels are constrained. QD-OLED sits at the intersection. quantum dot color volume with OLED contrast. and is the current performance leader for rooms that need both brightness and accuracy. 4K content is the baseline; 8K panels are available and relevant for screen sizes above 98 inches where pixel density becomes perceptible at normal viewing distances.

At the reference end of the range: the Sony BVM-HX310 is a professional broadcast reference monitor used in color-grading suites. It is the correct answer for a client who wants the image the colorist approved, not a consumer interpretation of it. It is not the right answer for every media room, but it belongs in any honest discussion of what the top of the display market looks like.

For very large rooms or media rooms with an architectural wall built to accept it, an LED wall is an alternative to a single panel. LED walls have no size ceiling, handle ambient light without compromise, and allow custom aspect ratios. The tradeoff is pixel pitch at close viewing distances. the right pitch for a 12-foot seating distance is different from the right pitch for a 20-foot throw. We size and spec accordingly. See our post on video tiling and multiview for how LED walls handle multi-source content.

Daylight glare is the most common display problem in great rooms and family rooms. The strategy is layered: start with motorized shades that can reduce direct sunlight without eliminating natural light, choose a panel with a matte or anti-glare coating where appropriate, and position the display so it does not face a window directly. These three steps eliminate most glare complaints without converting a family room into a light-sealed box.

2. Audio: Invisible Architecture

A soundbar is not the right answer for a great room. The dispersion pattern is too narrow, the bass output is insufficient for room volumes above roughly 2,500 cubic feet, and the stereo image collapses for anyone not seated in the center seat. A great room needs a speaker system that covers the full seating area with even level and proper directional cues. That means speakers the room cannot see.

Sonance Invisible Series speakers are installed behind a layer of drywall compound and painted over. The result is a flat wall with no visible grille, no visible speaker, and no concession to the room's aesthetic. Sound pressure levels and frequency response are measured after installation and corrected with DSP. For rooms where invisible is the specification, this is the correct path. Read our post on invisible speakers and luxury audio design for the full technical overview.

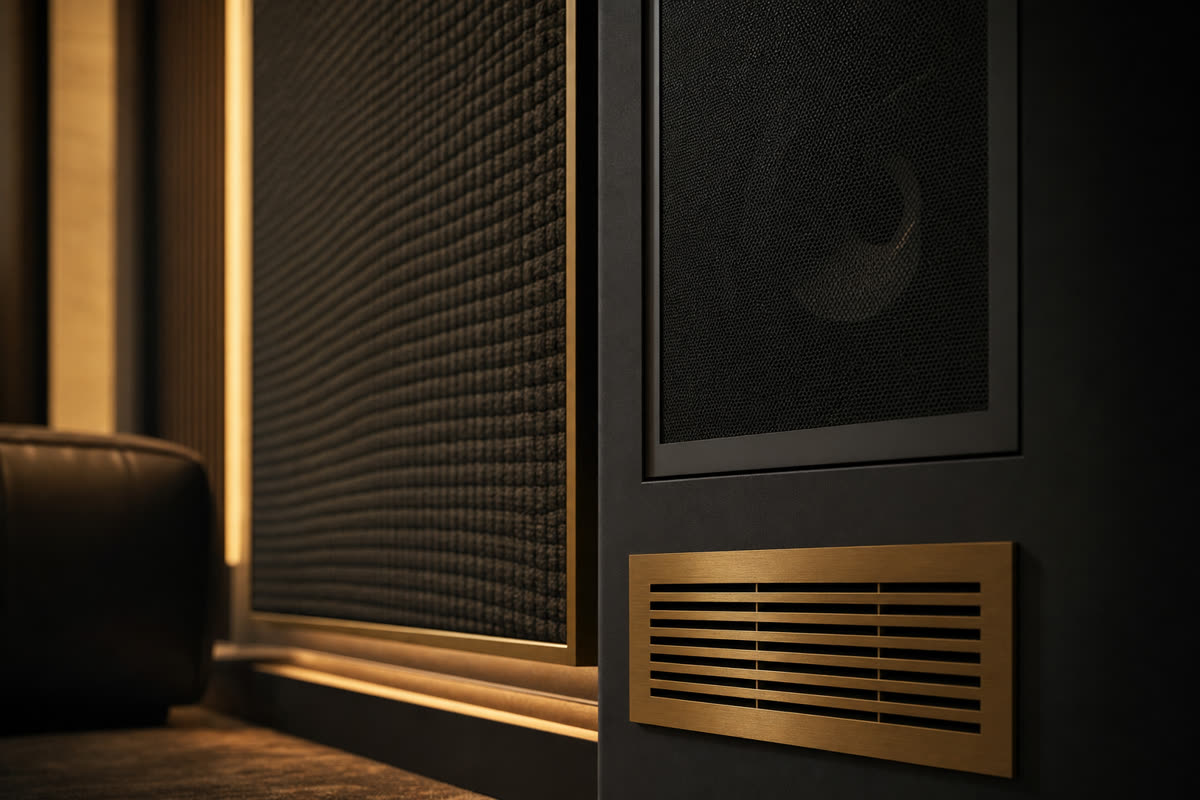

In rooms where invisible installation is not structurally feasible, in-wall LCR speakers behind acoustically transparent fabric panels are the next-best solution. The panels can match millwork, integrate with built-in cabinetry, or disappear behind a fabric wall treatment. In less acoustically critical zones. a secondary seating area, a bar counter, a casual lounge alcove. Sonos Architectural in-ceiling speakers handle fill coverage without requiring the full in-wall treatment.

Subwoofer placement in a media room is solved differently than in a dedicated theater. Open floor plans and irregular room geometries create bass cancellation problems that a single sub in one corner will not fix. We use multiple subs placed at distributed positions around the room, measured at all primary seating positions, and equalized with room-correction DSP to produce flat, even bass response across the seating area. The subwoofers are built into millwork, concealed in cabinetry, or placed behind acoustically transparent panels so they are not visible.

3. Lighting: Scenes That Change the Room Without Rebuilding It

Lighting in a media room has to serve multiple states: bright for daily use, dim for viewing, focused for gaming, warm for conversation. The way to accomplish this without multiple switching systems and manual adjustments is a programmed scene architecture on a Lutron HomeWorks system.

Four scenes cover most media rooms:

• Watch. Display-adjacent ambient lighting reduced to eliminate screen glare. Bias lighting behind the display at a color temperature calibrated to D65 or D75 for eye comfort. Overhead fixtures dimmed to below 10 percent. One tap from any keypad or from the Crestron interface.
• Game. Slightly brighter than Watch. Enough fill light for controller visibility without washing the screen. Dynamic color options via Ketra accent fixtures if the room spec includes them. Ketra's tunable white and color spectrum allows scene-reactive bias lighting that can follow on-screen content.
• Conversation. Full ambient with warm color temperature. The room feels like a living room again. The display is off. Speakers transition to background music from the distributed audio system.
• Bright. Full output for cleaning, setup, or high-activity use. Useful as a scene anchor to confirm all fixtures are functional.

Motorized shades are part of the lighting control architecture, not separate from it. A Lutron-integrated shade spec allows the Watch scene to lower the shades, reduce solar gain, and eliminate glare simultaneously with the lighting adjustment. Sheer shades for daytime privacy, blackout liners for full light control. both on the same keypad command. See our lighting control service page for the full scope of what HomeWorks and Ketra deliver in a residential installation.

4. Content: Source Routing Without App Sprawl

The default approach in most homes is one streaming stick per TV, each with its own apps and its own remote. This works until the household has more than two displays, starts using a gaming console, or wants to send a movie from one room to another. At that point, the system becomes unmanageable.

A real media room answers this with a centralized video source philosophy. Apple TV at 4K handles most streaming content and integrates natively with HomeKit and Crestron via driver. Roku covers the remaining streaming services where Apple TV's content catalog falls short. Kaleidescape is the right answer for a client who wants their film library stored locally with full lossless audio and zero buffering. the Delta movie player retrieves content from a Strato server in seconds regardless of internet conditions. Read our post on Apple TV versus a centralized video source for the tradeoffs in full detail.

Gaming console routing requires HDMI 2.1 bandwidth, variable refresh rate support, and low-latency processing. We specify the display input path, the HDMI matrix, and the audio routing to preserve the full gaming pipeline. 4K/120Hz where the console and display both support it, with lossless audio on the same path. The gaming source appears on the Crestron interface alongside streaming and Kaleidescape; the client does not manage a separate input chain.

When a home has more than two displays that need to share sources. a media room, a kitchen, a bar. a Crestron video matrix is the right infrastructure. The matrix allows any source to appear on any display without signal degradation and without running a separate device to each location. Read our post on distributed video explained for how the architecture scales. If you have three or more displays in the home, this conversation belongs in the design phase, not after the drywall is closed.

What We Build: Three Room Profiles

These are representative scopes based on room types we work in regularly. They are not fabricated project descriptions. The actual specification for your room comes from the walkthrough.

Where It Sits Next to Home Theater

Most clients who call asking about a home theater actually want a media room. The distinction matters because the construction path, the budget, and the room requirements are different.

A dedicated home theater requires an acoustically engineered, sealed room with light control at the construction level, tiered seating on a raked platform, and projection or a reference display sized for a single-use viewing geometry. It is a significant construction project. It is the right answer when a client has a room designated for it, has a family that will use a proper theater, and wants the full cinematic result. The construction side of that work. the assemblies that keep sound out of the rest of the house. is documented on our Soundproofing service page.

A media room is the right answer when:

• The room serves multiple purposes and a single-use cinema is not practical
• The space does not have the geometry or the construction budget for acoustic isolation
• The household watches sports, plays games, and entertains. uses that a dedicated theater handles poorly
• A large TV in a well-lit, well-sounding room is genuinely what the client wants, without the ceremony of a dedicated projection room
• The budget is better deployed on a calibrated, integrated media room plus a distributed audio system than on a dedicated theater alone

The walkthrough resolves this. We look at the space, hear what the household actually does in it, and tell you which path makes sense. Most of the time, the answer is a media room. That is not the lower-status answer. a properly built media room is used every day. A home theater is used on occasions.

Where It Ties In: Crestron, Networking, Distributed Video, and Shading

A media room does not sit in isolation. It is a zone on the whole-home system, and the quality of the result depends on the quality of the infrastructure behind it.

• Crestron control. The media room is a scene on the same Crestron processor that manages the house. Display on, audio zone active, lighting set, shades down. one command from any interface. We are an Elite Pro Crestron Dealer. The programming is ours; it is not templated from a third party.
• Networking. 4K streaming, gaming at low latency, and Kaleidescape retrieval all require a network infrastructure that can deliver consistent throughput to the room. We specify and install Ubiquiti-based enterprise wireless as a Ubiquiti UISP Pro Partner. Buffering and lag in a media room are network problems, not display problems. We solve them at the infrastructure level.
• Distributed video. If the home has multiple displays, the media room sources can be shared to other zones through a Crestron video matrix. The kitchen, the outdoor space, and the bar can all pull from the same Kaleidescape library or the same Apple TV without a separate device at each location. See our distributed AV service page and our post on distributed video explained for the full architecture.
• Motorized shading. Lutron-integrated motorized shades are part of the lighting scene, not an afterthought. They close on the Watch scene, adjust on the Conversation scene, and open fully on the Bright scene. The shading spec is coordinated with the display position during design to eliminate glare at all seating positions.
• Surround sound calibration. Every media room we build receives full acoustic measurement and calibration at the primary seating positions. Levels, crossovers, time alignment, subwoofer integration. all measured, not estimated. See our surround sound service page for the calibration methodology.

Frequently Asked Questions

“The room you use every day should work perfectly every day. That is a simpler standard than a theater, and it is harder to meet than people expect. We meet it.” __EMDASH_PROTECT_0__
